Technical Specs

StandardsISO 2768-f, ISO 13485

Tolerances+/- 0.003mm to +/- 0.01mm

ProcessesSwiss Machining, Micro Machining

FinishesMicro-polishing, Gold Plating, Electropolishing

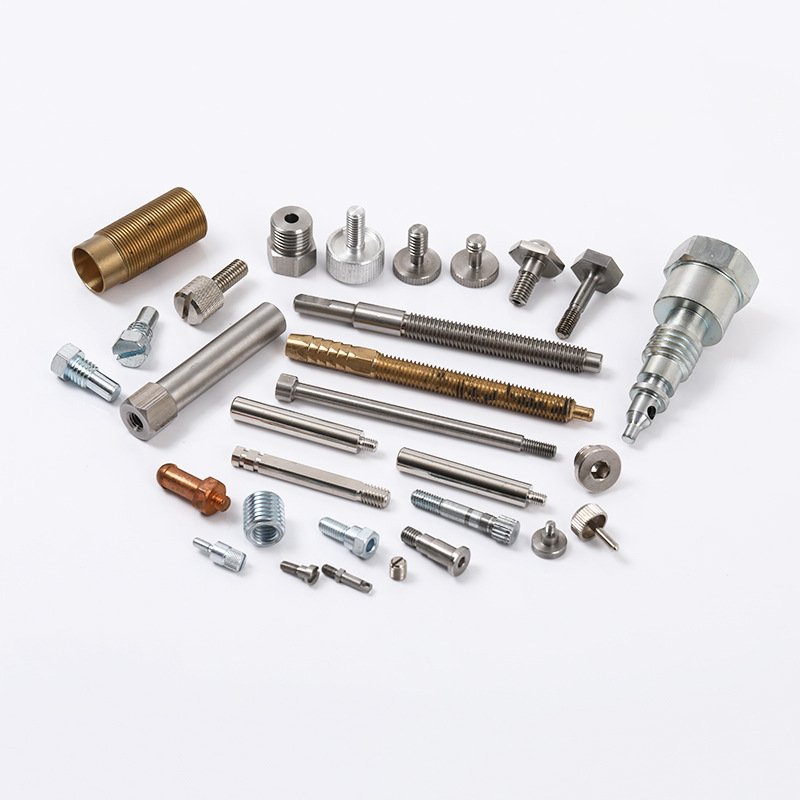

Swiss Turned Parts

For long, slender parts with extreme precision requirements, we utilize Swiss-style sliding headstock lathes. This technology minimizes deflection by supporting the workpiece close to the cutting tool, allowing us to hold tolerances as tight as +/- 0.003mm. This process is ideal for the watchmaking, medical, and electronics industries where micromachining is required. Our Swiss machines are equipped with live tooling for milling, drilling, and cross-tapping, enabling the production of complete, complex parts in a single operation. We specialize in micro-machining materials ranging from tough titanium alloys to soft pure gold.

Key Features

Micro Precision
Complex Geometries in One Setup
High Surface Finish
High Length-to-Diameter Ratios

Applications

Watch Parts
Medical Implants
Electronic Contact Pins
Fuel Injection Nozzles

Materials

Brass C38500 Titanium Gr 5 Beryllium Copper Nickel Silver

Request Technical Quote

Micro Precision

Products Range of Swiss Turned Parts

At Brassfit Group, we manufacture ultra-precision Swiss Turned Parts optimized for small, complex, tight-tolerance applications. Using advanced Swiss-type sliding head CNC machines, we ensure exceptional accuracy, repeatability, and surface finish — ideal for industries requiring micro-machined and high-precision engineered components. Swiss turning is especially suited for miniature and multi-operation geometries where consistency and precision are critical.

✔️ Micro Precision Turned Parts

✔️ Small Diameter Bushings & Bearings

✔️ Swiss Turned Pins, Shafts & Dowels

✔️ Precision Electrical Contact Pins

✔️ Swiss Turned Screws & Micro Hardware

✔️ Custom Threaded Inserts & Micro Sleeves

✔️ Swiss Machined Connectors & Adaptors

✔️ Miniature Couplings, Reducers & Fittings

✔️ RF, Telecom & Antenna Components

✔️ Medical & Instrumentation Micro Parts

✔️ Precision Valve Pins, Metering Parts & Seats

✔️ Automotive Sensor & Injection Parts

✔️ Watch & Fine Engineering Parts

✔️ Multi-feature Swiss Machined Assemblies

🧪 Materials We Machine

• Brass
• Copper
• Bronze
• Aluminium
• Titanium
• Stainless Steel
• Carbon / Mild Steel
• Lead-free Alloys
• Specialty Metals

🎨 Finishing & Coating Options

• Natural Machined Finish
• Nickel / Tin / Zinc / Chrome Plating
• Hard Anodizing (Aluminium)
• Gold / Silver / Palladium Coating
• Polished, Matte or Mirror Finish

🛠️ Custom Manufacturing

We develop parts based on:

• Engineering drawings
• CAD models
• Samples
• Functional requirements

Prototype runs, small precision batches, or high-volume continuous production.

🧵 Precision Machining Capabilities

Metric / Imperial BSP / BSPT / NPT UNF / UNC / UNEF Micro Threads

Diameter Range: Ø 0.50 mm to Ø 25 mm

Tolerances: Up to ±0.005–0.01 mm

Knurling, taper machining, grooving, slotting & profile shaping available.

Frequently Asked Questions

What is the smallest diameter you can machine?

0.5mm with high precision.

Are these parts suitable for medical applications?

Yes, commonly used for bone screws and implants.

Do you provide ultrasonic cleaning?

Yes, ensuring parts are cleanroom ready.

Can you machine Beryllium Copper?

Yes, with safety protocols for dust control.

How do you package tiny parts?

Vacuum packed or in custom blister trays.
